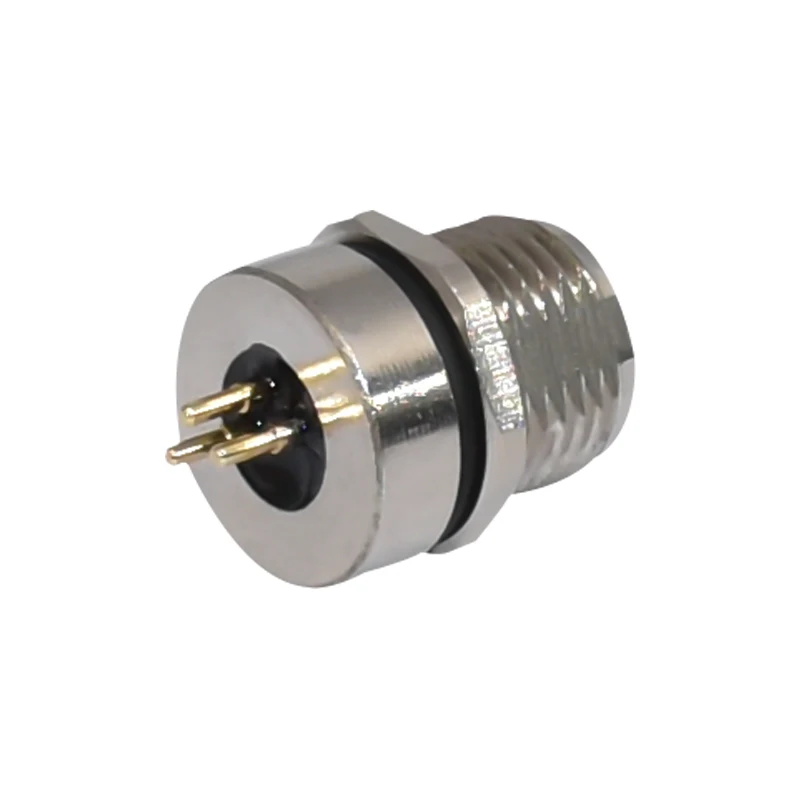

M8 A Code TPU GF Waterproof Power Connector 6p Female Panel Mount Connector

  • 1
  • 2
  • 3

Brand Name : RIGOAL

Model Number : M8 panel mount

Certification : CE，ROHS，ISO

Place of Origin : Shen zhen，China

MOQ : 100

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Application : Factory automation and process control

Product name : M8 panel mount connector male 4pin A-Conding PCB mount rear m

Termination : Soldering

Rated voltage : 60V

Coupling nut/screw : Brass,nickel-plated,CNC

Rated temperature : -25℃~80℃

Rated current : 3A

Contact carrier : TPU+GF

IP rating : IP67,IP68

Contact Now

M8 A Code 6pin Female Rear Panel Mount Connector Socket

Product Description
M8 A Code TPU GF Waterproof Power Connector 6p Female Panel Mount Connector
M8 A Code TPU GF Waterproof Power Connector 6p Female Panel Mount Connector
M8 A Code TPU GF Waterproof Power Connector 6p Female Panel Mount Connector
The M8 panel receptacles are ideal for compact and space-sensitive industrial applications. CABLEFORCE M8 panel connectors are
available with solder termination and PCB panel assembly type, with rear mounting and front mounting.
Insulation resistance:≥100 MΩ
Contact resistance:≤5mΩImpulse voltage:1500V
O-ring:FKM/SiliconPollution degree:3
Sealing:Epoxy resin
M8 A Code TPU GF Waterproof Power Connector 6p Female Panel Mount Connector
M8 A Code TPU GF Waterproof Power Connector 6p Female Panel Mount Connector
