Straight Orientation M8 Waterproof Connector Brass Alloy PA66 GF B Code

Name: Straight Orientation M8 Waterproof Connector Brass Alloy PA66 GF B Code
Brand: RIGOAL
Price: 1 USD

Quality Straight Orientation M8 Waterproof Connector Brass Alloy PA66 GF B Code wholesale

Brand Name : RIGOAL

Model Number : M8 panel mount connector

Certification : CE，ROHS，ISO

Place of Origin : Shen zhen，China

MOQ : 100

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Current Rating : 3A

Body Orientation : Straight

IP Rating : 60V

Shield : Available

Connector Locking : Fix screw

Contacts : 3 pins, 4 pins, 6 pins, 8 pins are available

Contact Now

CE certification Rear fastened soldering b code 4pin M8 panel connector female circular mount socket connector

Product Description

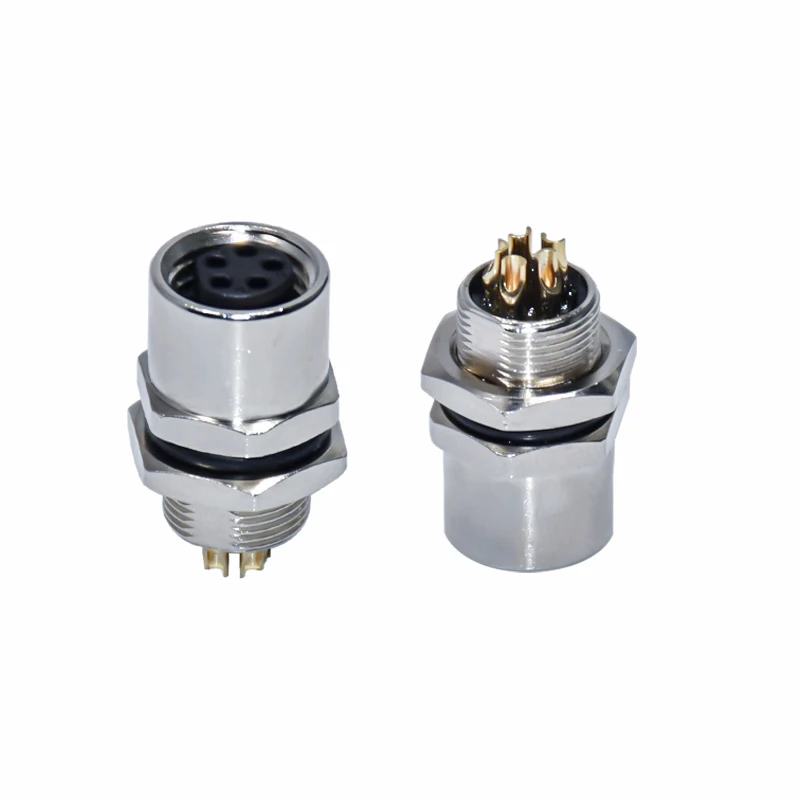

Straight Orientation M8 Waterproof Connector Brass Alloy PA66 GF B Code

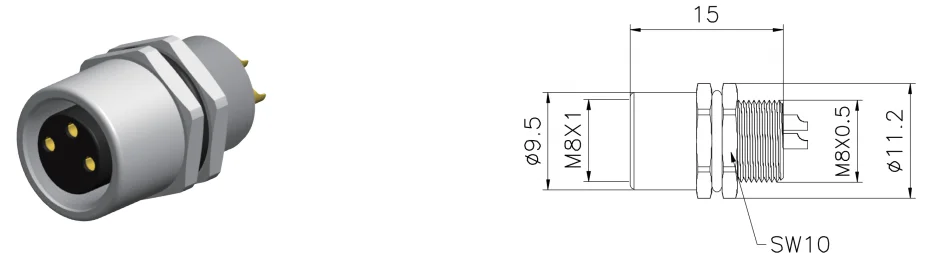

M8 board end connector, PCB board end connector

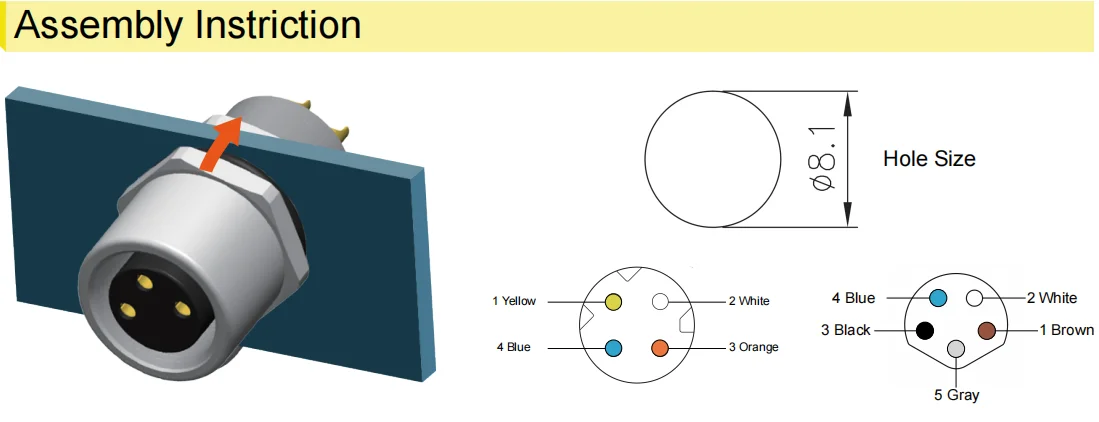

 M8 board end connectors can be installed in front of the board or rear of the board. PCB DIP pins and solder cup pins are
 available.

M8 PCB end connector has A code and B code two kinds. The connection mode of power supply, signal and PCB includes through-hole
 connection and plug mode, welding cup jumper connection and immersion brazing of single electronic wire and connector. The
 connection mode of M8 connector and board has front mounting type and rear mounting type. There is also a flanged M8 connector
 that locks the connector tightly to the plate with screws and nuts.

Product name	IP67 2 3 4 5 pin automation cable sensor plug cable connector m8 waterproof connector
Rated current	4A
Cable diameter	Ф 3.5mm~ Ф 5.6mm
Shell material	plastic and brass alloy
Insert material	PA66+GF20%
Contact material	copper( silver/ gold plated)
Mating cycle	500
Payment terms	100% T/T,Mastercard credit card,payoneer,e-Checking

Product Tags:

Straight Orientation M8 Waterproof Connector

Brass Alloy M8 Waterproof Connector

PA66 GF Female Circular Connector

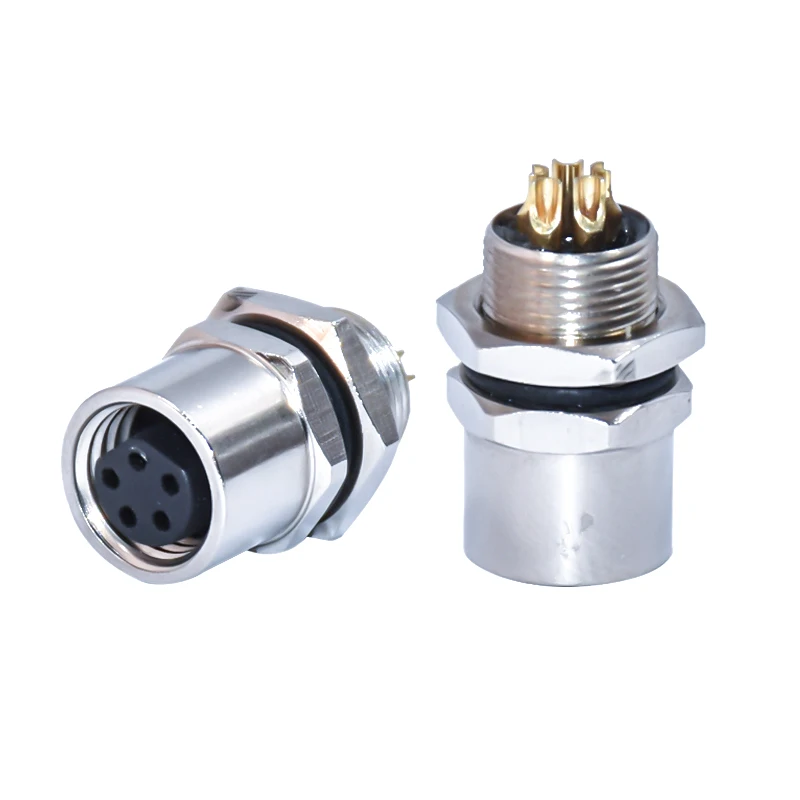

Straight Orientation M8 Waterproof Connector Brass Alloy PA66 GF B Code Images
